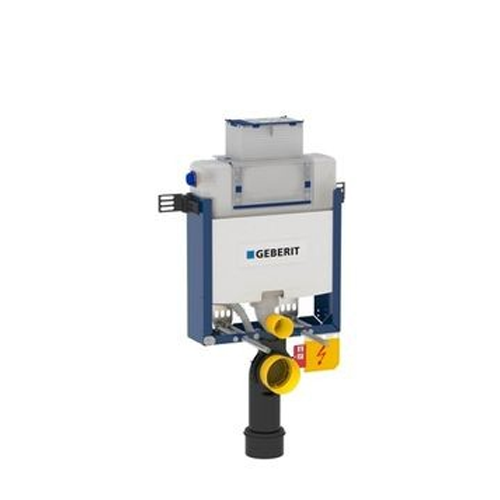

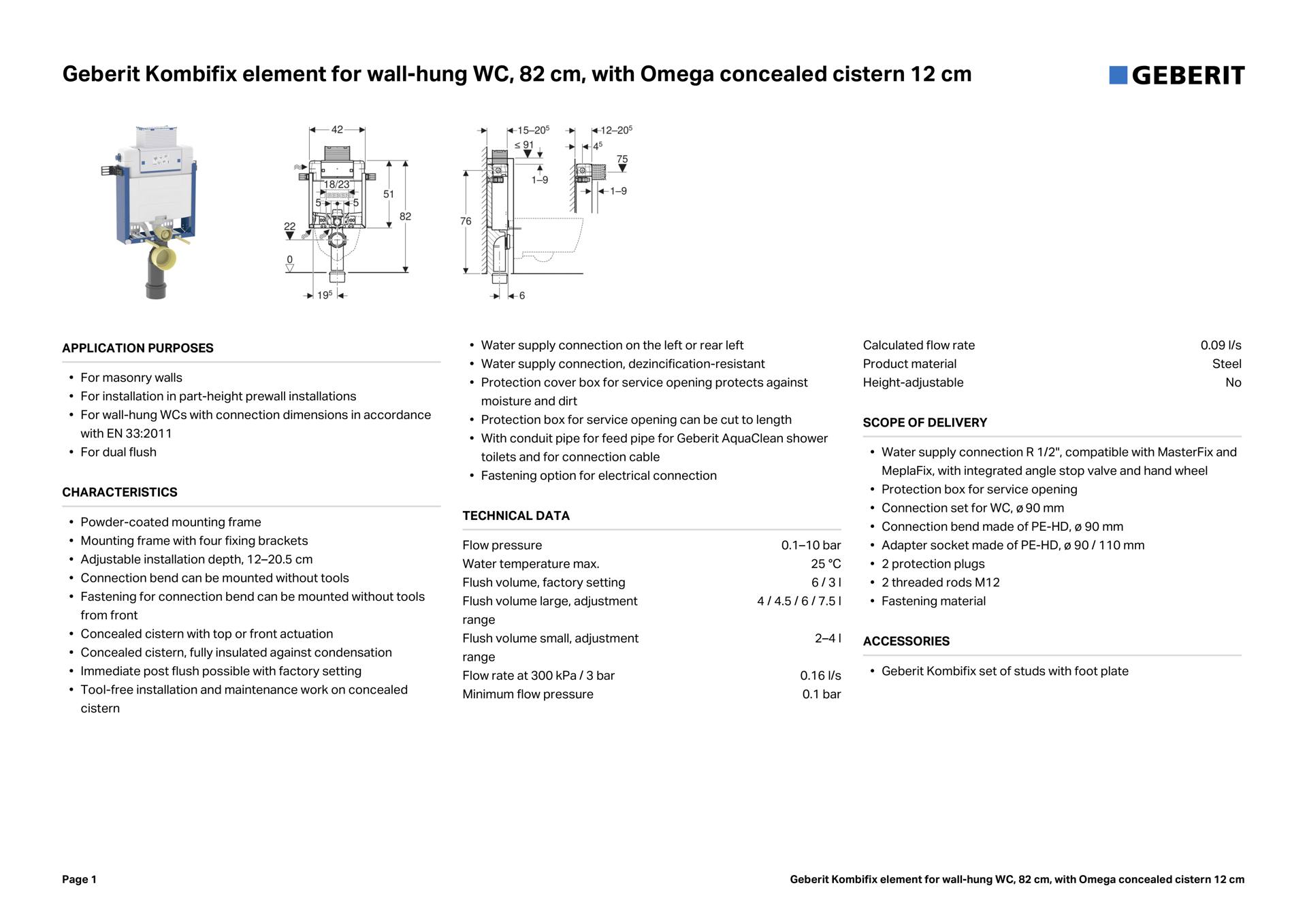

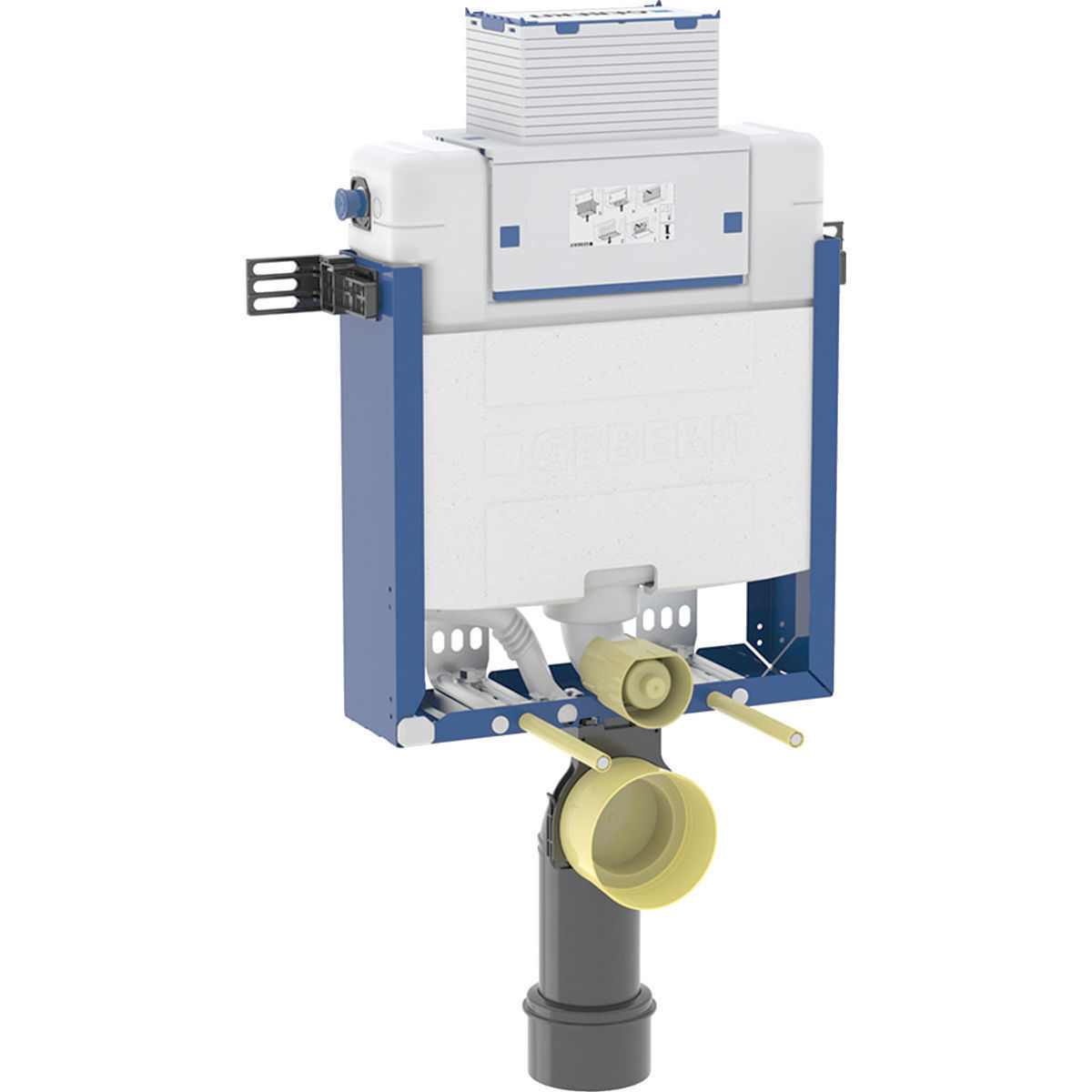

Geberit Kombifix element for wall-hung WC, 82 cm, with Omega concealed cistern 12 cm
======================================================================================
APPLICATION PURPOSES
---------------------
- For masonry walls
- For installation in part-height prewall installations
- For wall-hung WCs with connection dimensions in accordance with EN 33:2011
- For dual flush
CHARACTERISTICS
---------------
- Powder-coated mounting frame
- Mounting frame with four fixing brackets

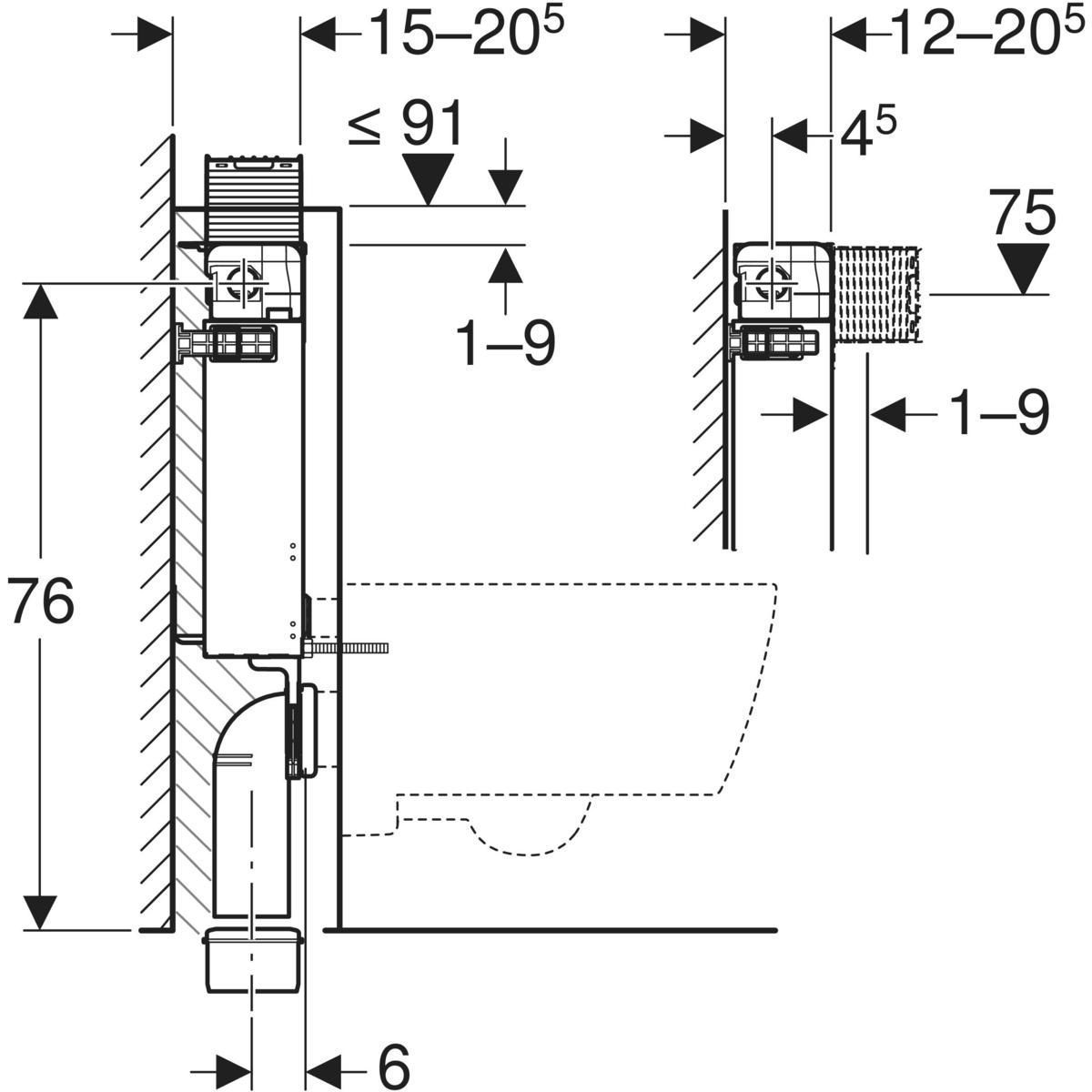

- Adjustable installation depth, 12-20.5 cm
- Connection bend can be mounted without tools
- Fastening for connection bend can be mounted without tools from front
- Concealed cistern with top or front actuation
- Concealed cistern, fully insulated against condensation
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the left or rear left
- Water supply connection, dezincification-resistant
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length
- With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
- Fastening option for electrical connection
TECHNICAL DATA
--------------
Flow pressure: 0.1-10 bar
Water temperature max.: 25 °C
Flush volume, factory setting: 6 / 3 l
Flush volume large, adjustment range: 4 / 4.5 / 6 / 7.5 l
Flush volume small, adjustment range: 2-4 l
Flow rate at 300 kPa / 3 bar: 0.16 l/s
Minimum flow pressure: 0.1 bar
Calculated flow rate: 0.09 l/s
Product material: Steel
Height-adjustable: No

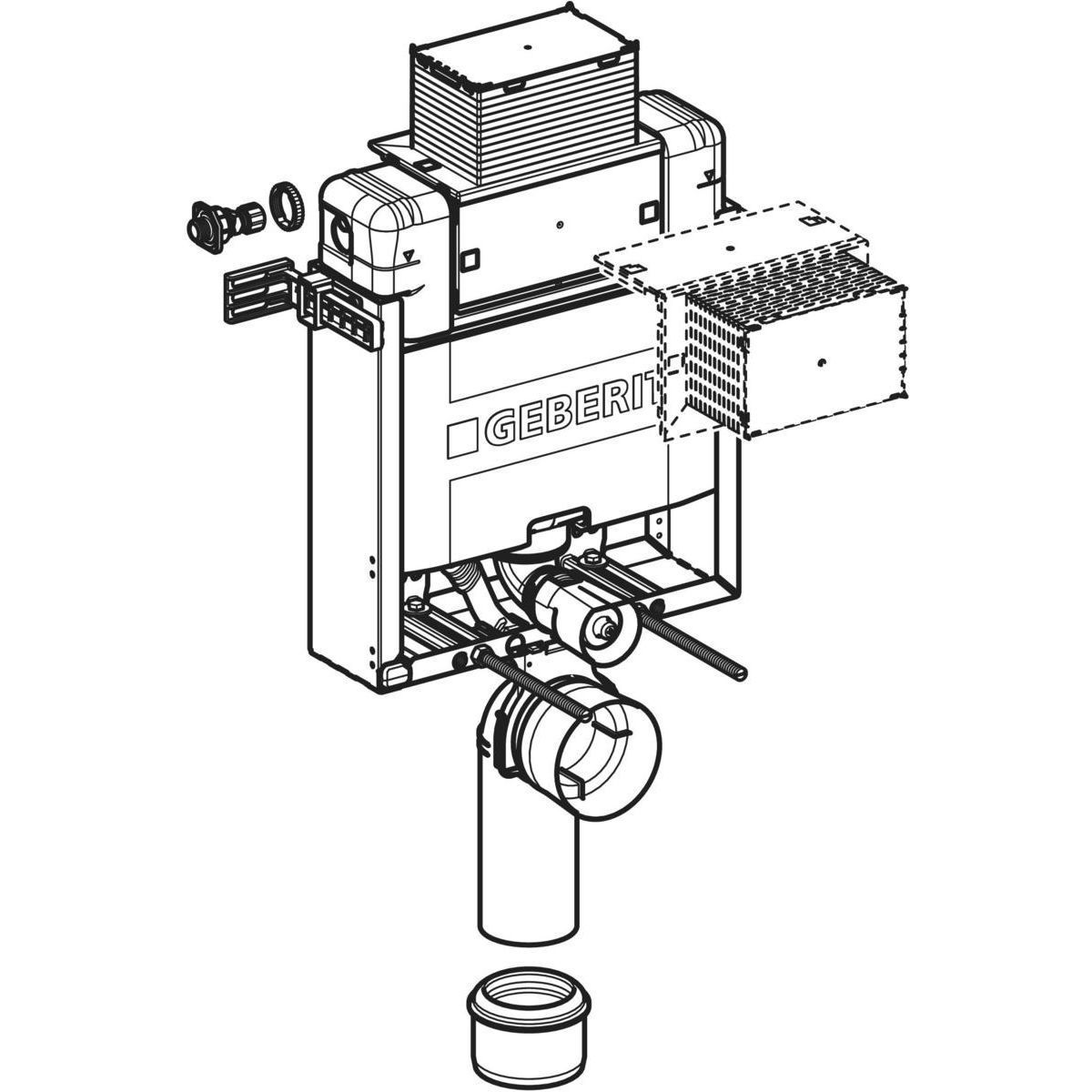

SCOPE OF DELIVERY
-----------------
- Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
- Protection box for service opening
- Connection set for WC, ø 90 mm
- Connection bend made of PE-HD, ø 90 mm
- Adapter socket made of PE-HD, ø 90 / 110 mm
- 2 protection plugs
- 2 threaded rods M12
- Fastening material
ACCESSORIES
-----------
- Geberit Kombifix set of studs with foot plate

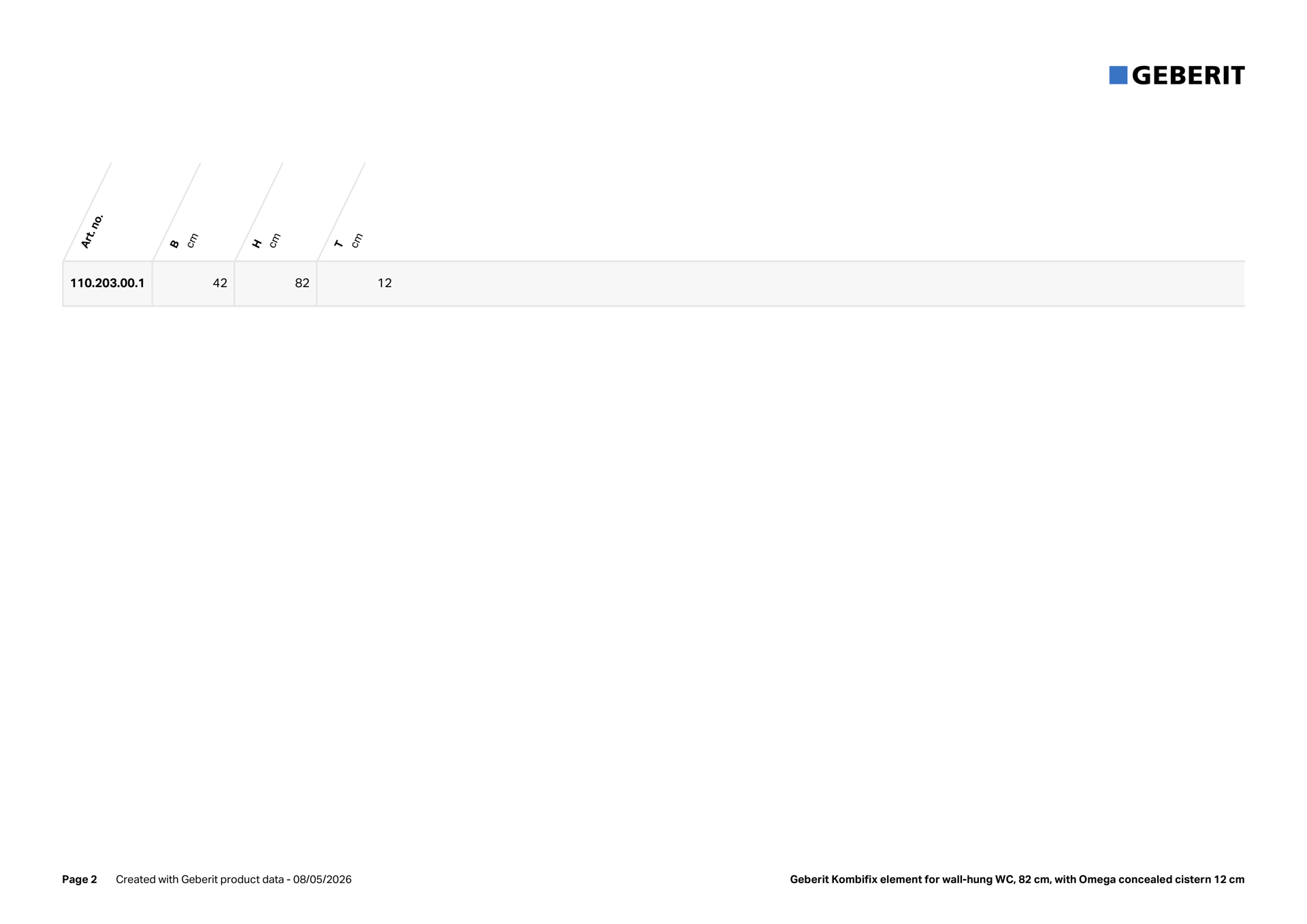

ARTICLE DATA
------------

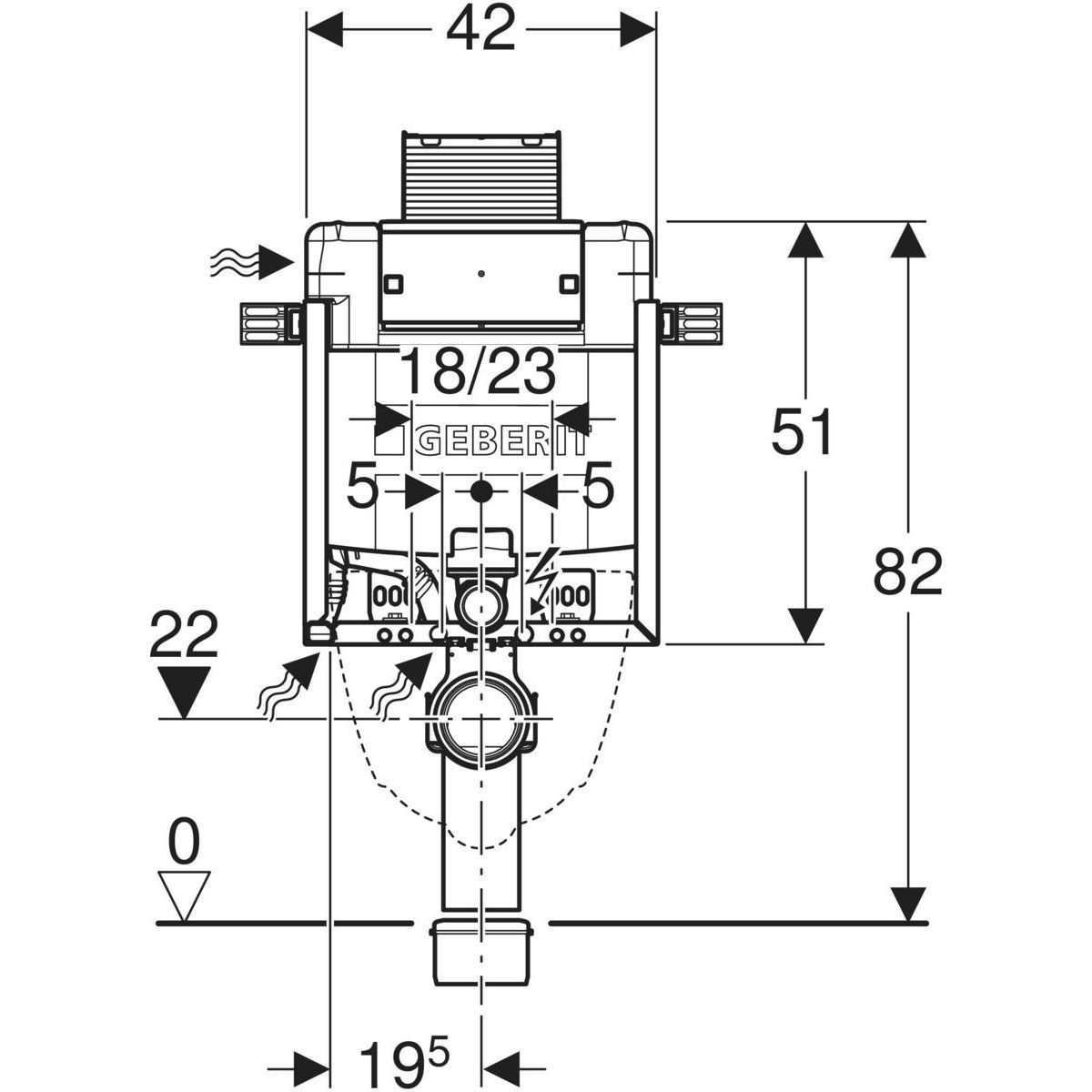

Art. no. B cm H cm T cm
110.203.00.1 42 82 12
