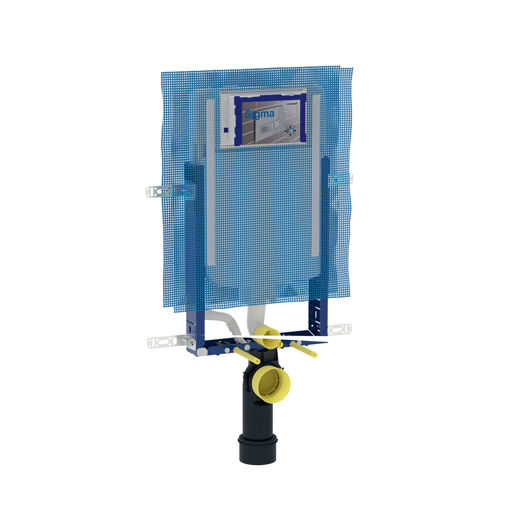

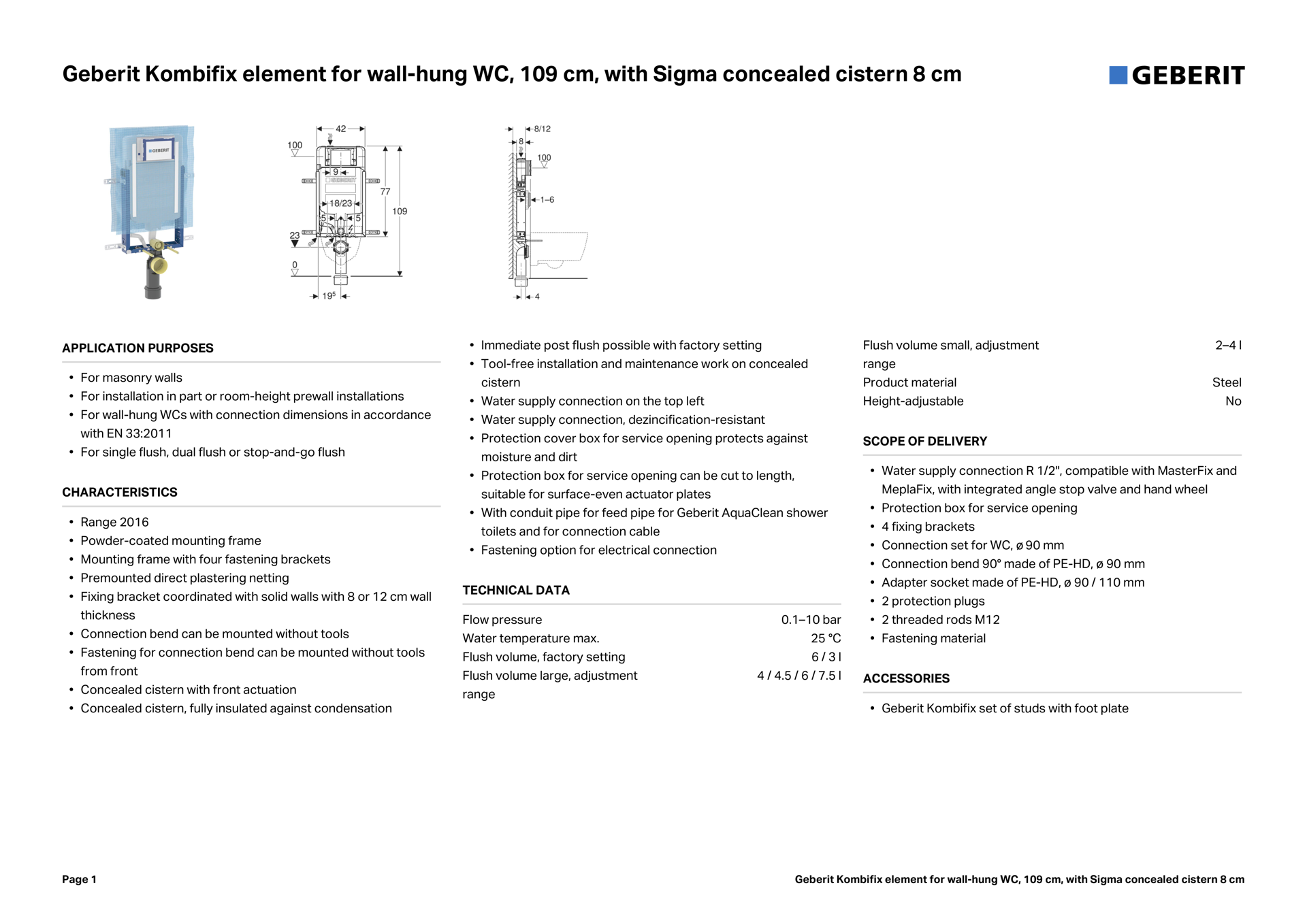

Geberit Kombifix element for wall-hung WC, 109 cm, with Sigma concealed cistern 8 cm
APPLICATION PURPOSES
• For masonry walls
• For installation in part or room-height prewall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For single flush, dual flush or stop-and-go flush
CHARACTERISTICS
• Range 2016
• Powder-coated mounting frame
• Mounting frame with four fastening brackets
• Premounted direct plastering netting

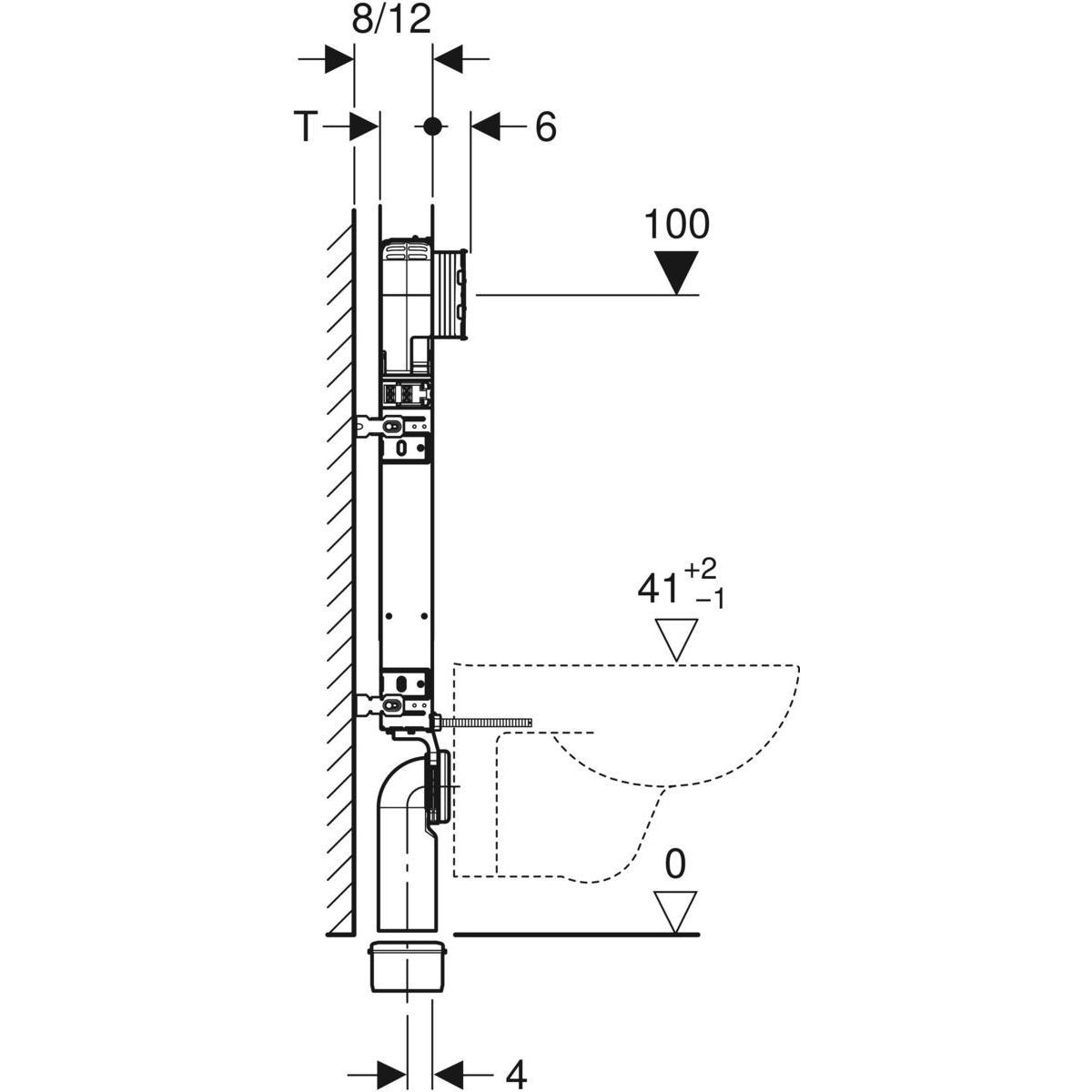

• Fixing bracket coordinated with solid walls with 8 or 12 cm wall thickness
• Connection bend can be mounted without tools
• Fastening for connection bend can be mounted without tools from front
• Concealed cistern with front actuation
• Concealed cistern, fully insulated against condensation
• Immediate post flush possible with factory setting
• Tool-free installation and maintenance work on concealed cistern
• Water supply connection on the top left
• Water supply connection, dezincification-resistant
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length, suitable for surface-even actuator plates
• With conduit pipe for feed pipe for Geberit AquaClean shower toilets and for connection cable
• Fastening option for electrical connection
TECHNICAL DATA
• Flow pressure 0.1–10 bar
• Water temperature max. 25 °C
• Flush volume, factory setting 6 / 3 l
• Flush volume large, adjustment range 4 / 4.5 / 6 / 7.5 l
• Flush volume small, adjustment range 2–4 l
• Product material Steel
• Height-adjustable No

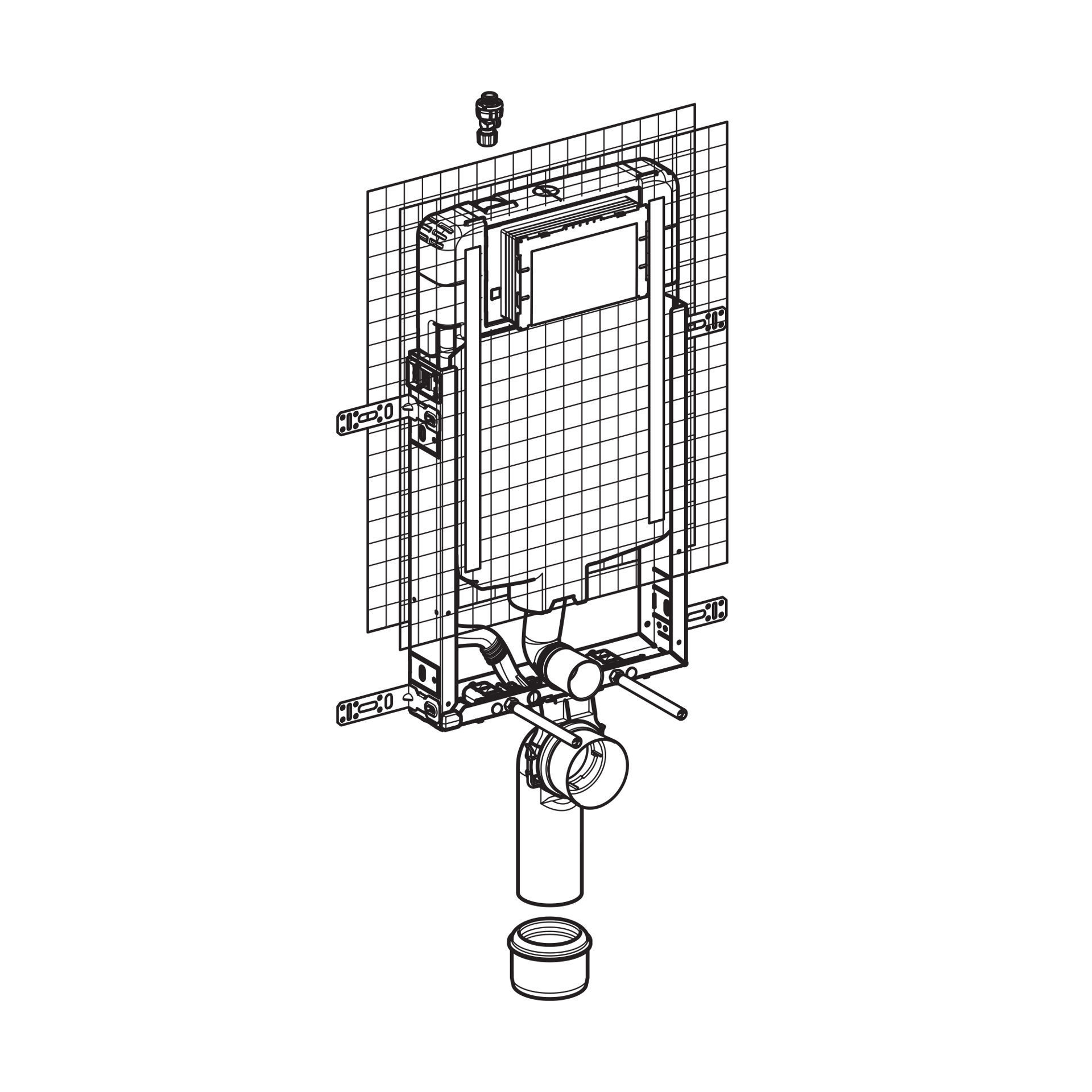

SCOPE OF DELIVERY
• Water supply connection R 1/2", compatible with MasterFix and MeplaFix, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 4 fixing brackets
• Connection set for WC, ø 90 mm
• Connection bend 90° made of PE-HD, ø 90 mm
• Adapter socket made of PE-HD, ø 90 / 110 mm
• 2 protection plugs
• 2 threaded rods M12
• Fastening material
ACCESSORIES
• Geberit Kombifix set of studs with foot plate

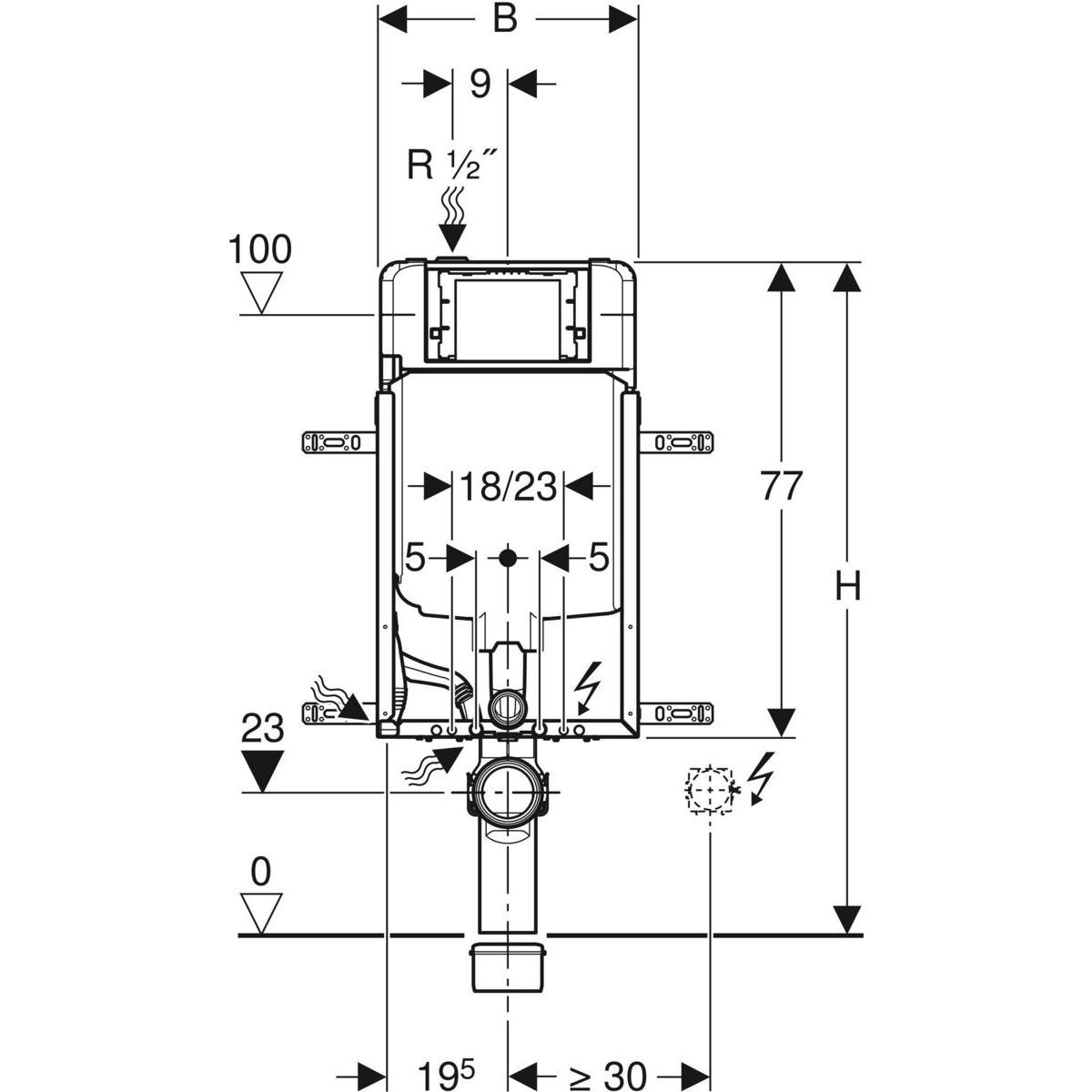

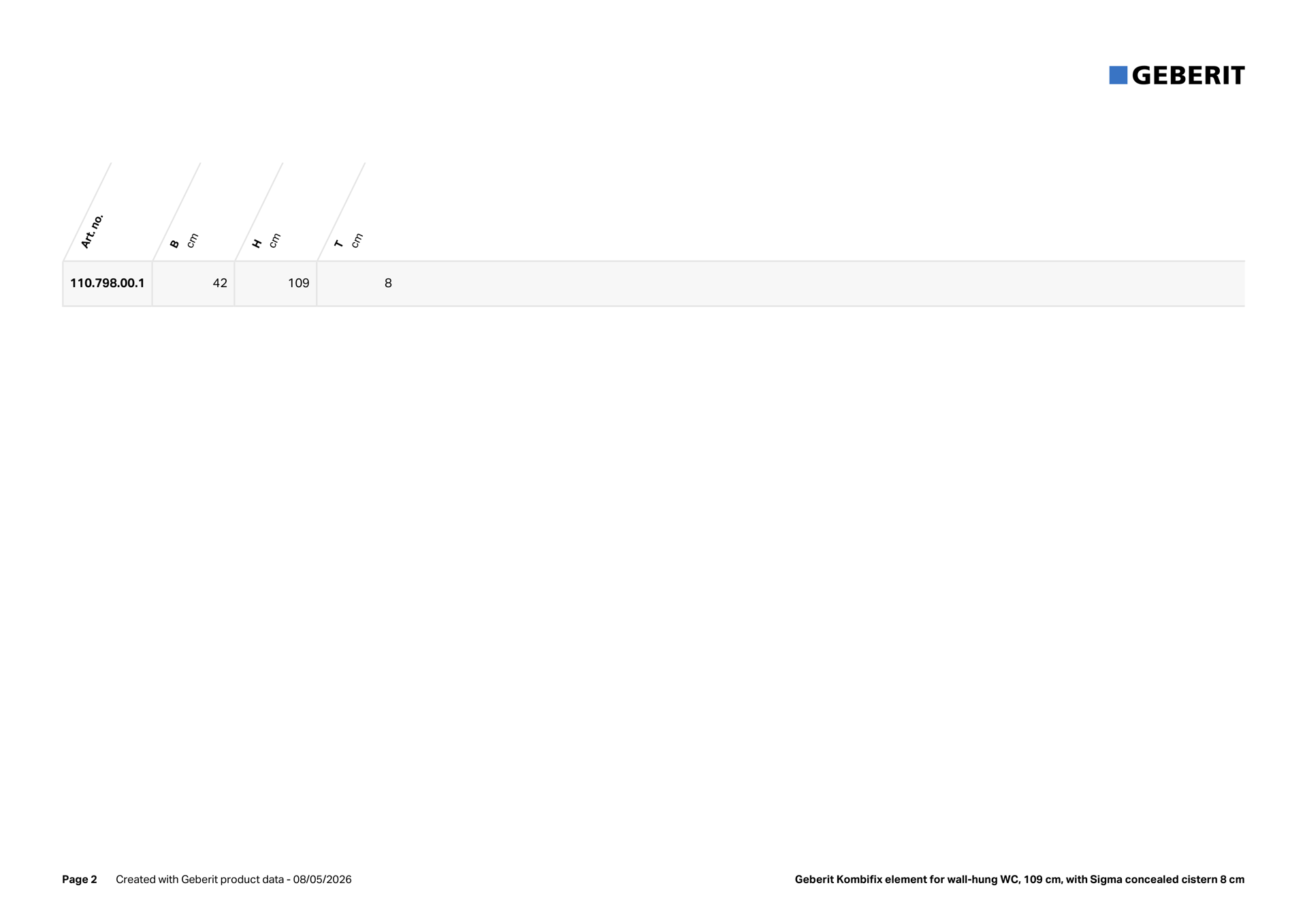

Art. no. B cm H cm T cm
110.798.00.1 42 109 8
